WH1E Diesel Engine Turbocharger 3534617 For Various Truck TD 73ES Engine D7A Turbo

China WH1E Diesel Engine Turbocharger 3534617 For Various Truck TD 73ES Engine D7A Turbo supplier
WH1E Diesel Engine Turbocharger 3534617 For Various Truck TD 73ES Engine D7A Turbo supplier WH1E Diesel Engine Turbocharger 3534617 For Various Truck TD 73ES Engine D7A Turbo supplier WH1E Diesel Engine Turbocharger 3534617 For Various Truck TD 73ES Engine D7A Turbo supplier WH1E Diesel Engine Turbocharger 3534617 For Various Truck TD 73ES Engine D7A Turbo supplier WH1E Diesel Engine Turbocharger 3534617 For Various Truck TD 73ES Engine D7A Turbo supplier

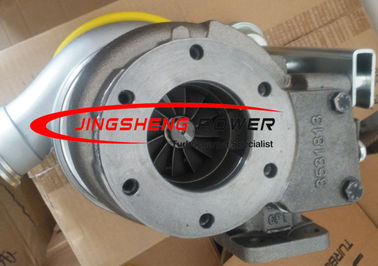

Large Image :  WH1E Diesel Engine Turbocharger 3534617 For Various Truck TD 73ES Engine D7A Turbo

Product Details:

Place of Origin: China
Brand Name: JINGSHENG
Certification: ISO/TS 16949:2009
Model Number: WH1E

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: JingSheng brand;Neutral packing;OEM
Delivery Time: 5-7days
Payment Terms: 40% T/T in advance,and balanced before delivery
Supply Ability: 7000pcs per month
Contact Now
Detailed Product Description
Type: TURBOCHARGER Material: K18
Size: Standard Stock: Always
Type: Free Standing

WH1E turbocharger 3534617 for Various Truck TD 73ES Engine D7A turbo 1993-10 Volvo Various Truck with D7A Engine

Product Description

Part Number 3534617
Previous Version 3534617D, 3534408, 3534615, 3534616, 3534617, 3534618, 3534619
OE number 477867, 477866, 477836, 477869, 477835, 477889
Description Volvo Various Truck TD 73ES
CHRA 3545711 (3545731, 3575683)
Turbo Model WH1E-8264BV/H14EC8, WH1E
Engine D7A
Engine Manufacturer Volvo
KW 230 HP
Displacement 7.3L, 7000 ccm
Fuel Diesel
Angle α (compressor housing) 292.5/357
Angle β (turbine housing) 45/360
Bearing Housing 3502500/3520574 (1152301450)
Turbine Wheel 3522879/3535359 (Ind. 76. mm, Exd. 64. mm, Trm 71, 6+6 Blades, LH) (1152301436)
Comp. Wheel 3599646 (Ind. 54. mm, Exd. 83. mm, 8+8 Blades, Super back) (1152301403)
Back plate 3522801
Heat shield Number 3519302 (1152301340)
Repair Kit 4027309 (1152301750)
Turbine Housing 4030302/3534635
Compressor Cover 3533755
Actuator 3529856
Gasket (turbine inlet) 3545652/4027309 (1152301750)
Gasket (turbine outlet) 210226 (Stainless Steel)
Gasket oil inlet 147837 (210023)
Gasket (oil outlet) 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)

Applications

WH1E turbocharger 3534617 for Various Truck TD 73ES Engine D7A turbo

1993-10 Volvo Various Truck with D7A Engine

               WH1E Diesel Engine Turbocharger 3534617 For Various Truck TD 73ES Engine D7A Turbo
