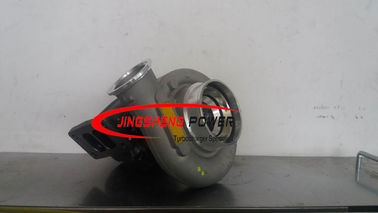

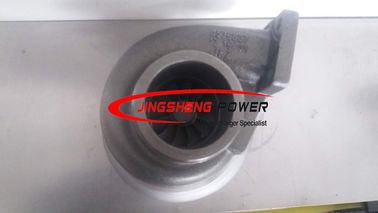

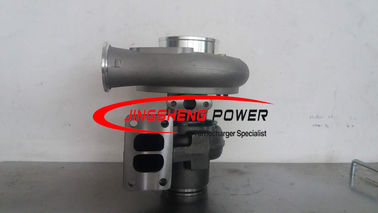

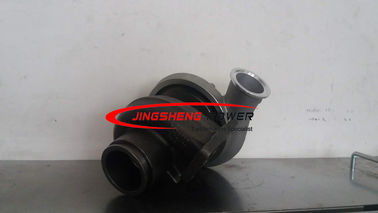

Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158

Cooperate for more than 1 year.Jingsheng Power is a producer in good faith!

—— Michael Blanco

very good friends in China!

—— Lucas Damian

Jingsheng is professinal in turbos producing

—— Dmitry Vinogradovas

I buy shaft for the first.And will buy more later.Mr. Liang is enthusiastic

—— Mamun

I'm Online Chat Now

Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158

China Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158 supplier
Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158 supplier Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158 supplier Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158 supplier Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158 supplier

Large Image :  Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158

Product Details:

Place of Origin: China
Brand Name: JINGSHENG
Certification: ISO/TS 16949:2009
Model Number: HX35

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: JingSheng brand;Neutral packing;OEM
Delivery Time: 5-7days
Payment Terms: 40% T/T in advance,and balanced before delivery
Supply Ability: 7000pcs per month
Contact Now
Detailed Product Description
Type: TURBOCHARGER Material: K18
Size: Standard Stock: Always
Type: Free Standing

komatsu pc200-7 industrial cummins engine turbo HX35 4038475 4035373, 3595158, 3595157 4089711, 6738828220, 4087911



Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158



Product Description


Part Number 4038475
Previous Version 4035373, 3595158, 3595157
OE number 4089711, 6738828220, 4087911
Description Industrial Ratings, Wheel Loader, GD405, GD555 Grader, DCA125ESK Genset, Excavator Cummins
Application Machine Moving TERRA
CHRA 4027883
Turbo Model HX35-A77J65GM/A70Q86FE12DD, HX35
Engine 6BTAA, WA200-250, PC200,
Manufacturer Part Number 3596668, 3598702, 3595158, 4039243, 4038480, 4035373, 4035374, 4038481, 3599109
Displacement 5.9L, 5900 ccm
Fuel Diesel
Angle α (compressor housing) 45/160/235/360°
Angle β (turbine housing) 5/20°
Bearing Housing 3532632/4027869
Turbine Wheel 3519336 (Ind. 70.0 mm, Exd. 59.9 mm, 12 Blades) (1152301435)
Comp. Wheel 3599639 (Ind. 50. mm, Exd. 83. mm, 8+8 Blades)
Seal Plate 3530923 (1154351300)
Heat shield Number 3519304 (3519302)(1152301340)
Repair Kit 3575169 (1153035750)
Gasket (turbine inlet) 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (oil outlet) 210060 (Paper) (311585, 148062)



Applications

2001-04 KCEC Cummins, Komatsu Wheeled Loader, Generator, Excavator with 6BTAA KCEC, KCEC Engine



Why choose us :
1> We are professional turbo and turbo parts factory. The good quality and the competitive price is the advantage of our company.
2> The material we choose is always equal to the OEM standard and products meet to OEM quality system processes
3> A trial order or sample orders are welcomed.
4> More than 800 kinds of turbo products are exported to Europe, America, Japan, and other countries and regions in the world.
5> We will do our best to service you all the time if you have the further question

Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158Komatsu Pc200-7 Industrial Cummins Engine Turbo For Holset HX35 4038475 4035373 3595158

Shipping:
Depending on various circumstances, three different delivery methods have been taken: by sea, by air cargo and by express service.
*By sea. This is the most economical way of delivery. Suit for big quantity order, the delivery cost dramatically low and assist you in achieving maximum profit. It normally would take about one month for cargoes to reach their destination port.
*By air cargo. The advantage of air cargo is it costs much less time than delivery by sea. Generally it would take about one to two weeks for cargo reaching its destination.
*By express service. It is the most expensive way of delivery, but it is really quick and convenient. Normally this door to door service can deliver the goods to your company only in 3-5days. Fortunately, we have signed big discount contract with most express companies, such as TNT, DHL and UPS, to help our customers cut their delivery expenditure.
----------------------------------------------------
Packing:



  1. We can design the packing by your requirements but with bigger quantity.
  2. If need wooden pallets, the customer needs to pay for the wooden pallet charges
  3. If no requirements, we offer the Corrugated Carton and vellum paper
  4. The price we offer is the factory price.
  5. We can help you to delivery the goods while you have requirement.
  6. And the shipment fee shall be in your account.
  7. We can only release the goods after the payment of the products was made

----------------------------------------------------
Warranty:
Once buying our products you could enjoy 6 months warranty period. Within this period you could claim quality warranty anytime when you find quality problem of our products.
Please contact our After-sales service department in time within 30days after you received the cargo.
we have complete after-sale services operated by the service department. We can provide you with replacement as well as spare parts. Our technical capability and fast response can make you save money and cost.
