Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003

Cooperate for more than 1 year.Jingsheng Power is a producer in good faith!

—— Michael Blanco

very good friends in China!

—— Lucas Damian

Jingsheng is professinal in turbos producing

—— Dmitry Vinogradovas

I buy shaft for the first.And will buy more later.Mr. Liang is enthusiastic

—— Mamun

I'm Online Chat Now

Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003

China Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003 supplier
Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003 supplier Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003 supplier Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003 supplier Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003 supplier

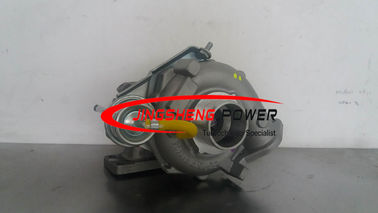

Large Image :  Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003

Product Details:

Place of Origin: China
Brand Name: JINGSHENG
Certification: ISO/TS 16949:2009
Model Number: GT2259LS

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: JingSheng brand;Neutral packing;OEM
Delivery Time: 5-7days
Payment Terms: 40% T/T in advance,and balanced before delivery
Supply Ability: 7000pcs per month
Contact Now
Detailed Product Description
Type: TURBOCHARGER Material: K18
Size: Standard Stock: Always
Type: Free Standing

Hino Earth Moving GT2259LS Turbo 761916-5003S 761916-5008 , 761916-0003, 761916-0010, 787873-0001,761916-0008turbocharge

Product Description

Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003
Part Number 761916-5003S 761916-5008
Previous Version 761916-0003, 761916-3, 761916-0006, 761916-0007, 761916-0008, 761916-0009, 761916-0010, 787873-0001
OE number 244000494C, 241004631, 24100-4631,1760E0010A,24100-4600,24100-4640
Year 2006-
Description Excavator Construction
CHRA 433352-0085 (433352-5085S)
Turbo Model GT2259LS
Engine J05E-TA, JO5E
Displacement 5.3L, 5300 ccm, 4 Cylinders
KW 132/170
RPM Max 1600/3200
Fuel Diesel
Bearing Housing 734516-0004
Turbine Wheel 434716-0028 (Ind. 50. mm, Exd. 42.58 mm, 9 Blades)
Comp. Wheel 702549-0020 (Ind. 41.88 mm, Exd. 59.48 mm, Trm 3.68, 6+6 Blades, Super Back)
Back plate 721019-0004 (104010027)
Heat shield Number 434685-0001
Repair Kit 709143-0001 (1100025761)
Replaced by 787873-0001, 761916-5008S



Applications

2006- Hino Excavator Construction with JO5E Engine



Kobelco SK200-8 with J05E



Kobelco SK250-8 with J05E





Why choose us :
1> We are professional turbo and turbo parts factory. The good quality and the competitive price is the advantage of our company.
2> The material we choose is always equal to the OEM standard and products meet to OEM quality system processes
3> A trial order or sample orders are welcomed.
4> More than 800 kinds of turbo products are exported to Europe, America, Japan, and other countries and regions in the world.
5> We will do our best to service you all the time if you have the further question

Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003Hino Earth Moving GT2259LS Turbo For Garrett 761916-5003S 761916-5008 761916-0003

Shipping:
Depending on various circumstances, three different delivery methods have been taken: by sea, by air cargo and by express service.
*By sea. This is the most economical way of delivery. Suit for big quantity order, the delivery cost dramatically low and assist you in achieving maximum profit. It normally would take about one month for cargoes to reach their destination port.
*By air cargo. The advantage of air cargo is it costs much less time than delivery by sea. Generally it would take about one to two weeks for cargo reaching its destination.
*By express service. It is the most expensive way of delivery, but it is really quick and convenient. Normally this door to door service can deliver the goods to your company only in 3-5days. Fortunately, we have signed big discount contract with most express companies, such as TNT, DHL and UPS, to help our customers cut their delivery expenditure.
----------------------------------------------------
Packing:



  1. We can design the packing by your requirements but with bigger quantity.
  2. If need wooden pallets, the customer needs to pay for the wooden pallet charges
  3. If no requirements, we offer the Corrugated Carton and vellum paper
  4. The price we offer is the factory price.
  5. We can help you to delivery the goods while you have requirement.
  6. And the shipment fee shall be in your account.
  7. We can only release the goods after the payment of the products was made

----------------------------------------------------
Warranty:
Once buying our products you could enjoy 6 months warranty period. Within this period you could claim quality warranty anytime when you find quality problem of our products.
Please contact our After-sales service department in time within 30days after you received the cargo.
we have complete after-sale services operated by the service department. We can provide you with replacement as well as spare parts. Our technical capability and fast response can make you save money and cost.
