Fiat Commercial Vehicle K03 Turbo 53039880116 504136797 53039880115 49135-05130 49135-05131

China Fiat Commercial Vehicle K03 Turbo 53039880116 504136797 53039880115 49135-05130 49135-05131 supplier
Fiat Commercial Vehicle K03 Turbo 53039880116 504136797 53039880115 49135-05130 49135-05131 supplier Fiat Commercial Vehicle K03 Turbo 53039880116 504136797 53039880115 49135-05130 49135-05131 supplier Fiat Commercial Vehicle K03 Turbo 53039880116 504136797 53039880115 49135-05130 49135-05131 supplier Fiat Commercial Vehicle K03 Turbo 53039880116 504136797 53039880115 49135-05130 49135-05131 supplier

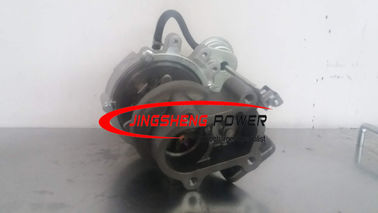

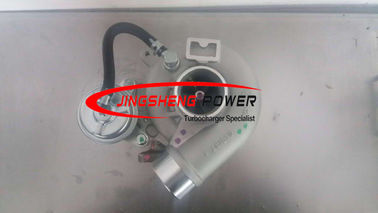

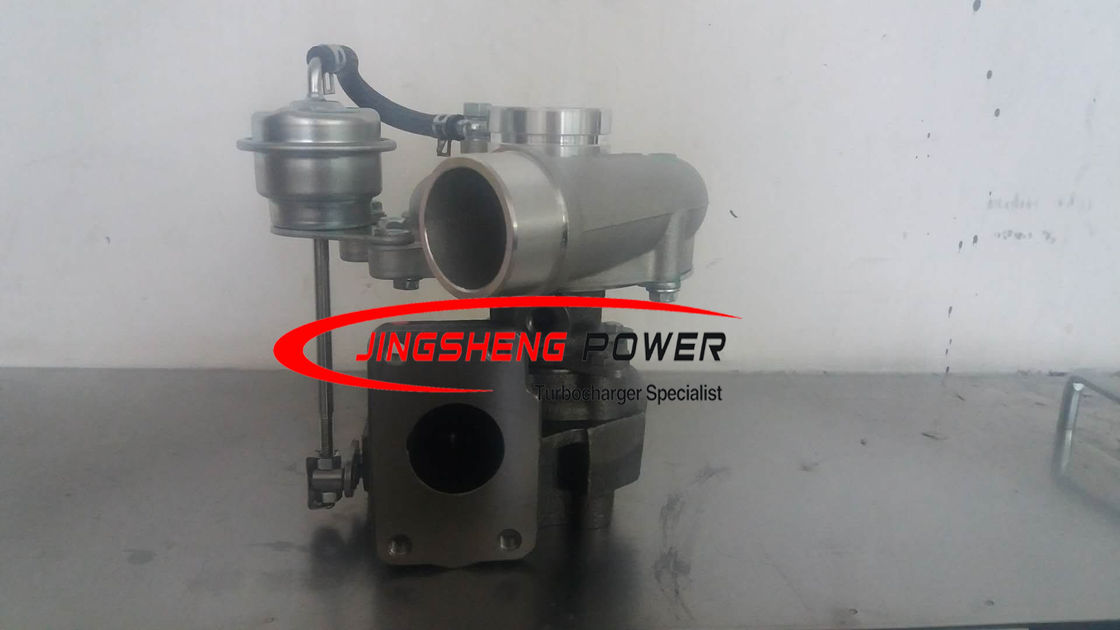

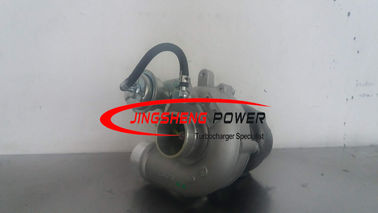

Large Image :  Fiat Commercial Vehicle K03 Turbo 53039880116 504136797 53039880115 49135-05130 49135-05131

Product Details:

Place of Origin: China
Brand Name: JINGSHENG
Certification: ISO/TS 16949:2009
Model Number: K03

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: JingSheng brand;Neutral packing;OEM
Delivery Time: 5-7days
Payment Terms: 40% T/T in advance,and balanced before delivery
Supply Ability: 7000pcs per month
Contact Now
Detailed Product Description
Type: TURBOCHARGER Material: K18
Size: Standard Stock: Always
Type: Free Standing

Fiat Commercial Vehicle K03 Turbo 53039880116 504136797 53039880115 49135-05130, 49135-05131,53039880116, 49135-05140

Product Description



Part Number 53039880116
OE number 504136797 53039880115 49135-05130, 49135-05131,53039880116, 49135-05140  504136785
Year 2005-2011
Description Commercial
Manufacturer Part Number 53039700116
CHRA
Turbo Model K03-2074DCB5.88KCAXD
Engine F1A
Engine Manufacturer Fiat
Displacement 2.3L
KW 94
RPM Max 4200
Fuel Diesel
Bearing Housing 53041510003
Turbine Wheel 53031205037
Comp. Wheel 53041232209
Back plate 53041515716
Heat shield Number 53031652000
Repair Kit
Turbine Housing 53031009091
Compressor Cover 53041005073
Turbine Housing AR 5.0
Alpha 315.5°
Beta 182.5°

Interchangeable with TF035HM-10T-5 Turbo 49135-05132



Applications

2005-2011 Fiat Commercial Ducato with F1A Engine



Why choose us :
1> We are professional turbo and turbo parts factory. The good quality and the competitive price is the advantage of our company.
2> The material we choose is always equal to the OEM standard and products meet to OEM quality system processes
3> A trial order or sample orders are welcomed.
4> More than 800 kinds of turbo products are exported to Europe, America, Japan, and other countries and regions in the world.
5> We will do our best to service you all the time if you have the further question



Shipping:
Depending on various circumstances, three different delivery methods have been taken: by sea, by air cargo and by express service.
*By sea. This is the most economical way of delivery. Suit for big quantity order, the delivery cost dramatically low and assist you in achieving maximum profit. It normally would take about one month for cargoes to reach their destination port.
*By air cargo. The advantage of air cargo is it costs much less time than delivery by sea. Generally it would take about one to two weeks for cargo reaching its destination.
*By express service. It is the most expensive way of delivery, but it is really quick and convenient. Normally this door to door service can deliver the goods to your company only in 3-5days. Fortunately, we have signed big discount contract with most express companies, such as TNT, DHL and UPS, to help our customers cut their delivery expenditure.
----------------------------------------------------
Packing:



  1. We can design the packing by your requirements but with bigger quantity.
  2. If need wooden pallets, the customer needs to pay for the wooden pallet charges
  3. If no requirements, we offer the Corrugated Carton and vellum paper
  4. The price we offer is the factory price.
  5. We can help you to delivery the goods while you have requirement.
  6. And the shipment fee shall be in your account.
  7. We can only release the goods after the payment of the products was made

----------------------------------------------------
Warranty:
Once buying our products you could enjoy 6 months warranty period. Within this period you could claim quality warranty anytime when you find quality problem of our products.
Please contact our After-sales service department in time within 30days after you received the cargo.
we have complete after-sale services operated by the service department. We can provide you with replacement as well as spare parts. Our technical capability and fast response can make you save money and cost.
