Komatsu 160 Excavator Cummins HX25W Turbo For Holset 4038790 3599355 3599356 4038791 4089714

Cooperate for more than 1 year.Jingsheng Power is a producer in good faith!

—— Michael Blanco

very good friends in China!

—— Lucas Damian

Jingsheng is professinal in turbos producing

—— Dmitry Vinogradovas

I buy shaft for the first.And will buy more later.Mr. Liang is enthusiastic

—— Mamun

I'm Online Chat Now

Komatsu 160 Excavator Cummins HX25W Turbo For Holset 4038790 3599355 3599356 4038791 4089714

China Komatsu 160 Excavator Cummins HX25W Turbo For Holset 4038790 3599355 3599356 4038791 4089714 supplier
Komatsu 160 Excavator Cummins HX25W Turbo For Holset 4038790 3599355 3599356 4038791 4089714 supplier Komatsu 160 Excavator Cummins HX25W Turbo For Holset 4038790 3599355 3599356 4038791 4089714 supplier Komatsu 160 Excavator Cummins HX25W Turbo For Holset 4038790 3599355 3599356 4038791 4089714 supplier Komatsu 160 Excavator Cummins HX25W Turbo For Holset 4038790 3599355 3599356 4038791 4089714 supplier Komatsu 160 Excavator Cummins HX25W Turbo For Holset 4038790 3599355 3599356 4038791 4089714 supplier

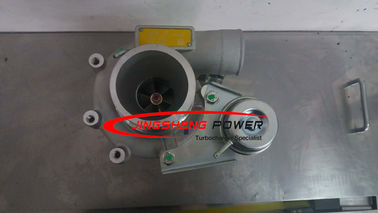

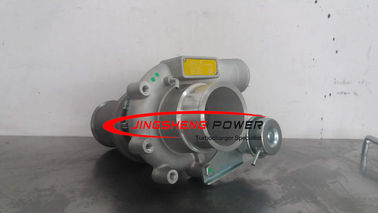

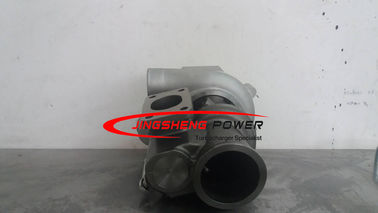

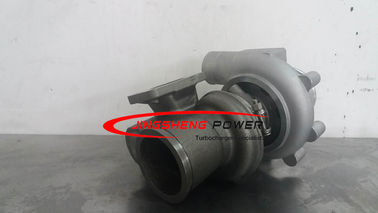

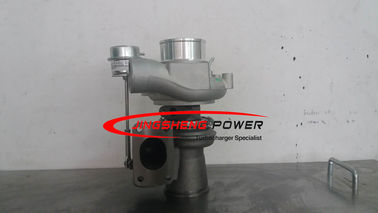

Large Image :  Komatsu 160 Excavator Cummins HX25W Turbo For Holset 4038790 3599355 3599356 4038791 4089714

Product Details:

Place of Origin: China
Brand Name: JINGSHENG
Certification: ISO/TS 16949:2009
Model Number: HX25W

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: JingSheng brand;Neutral packing;OEM
Delivery Time: 5-7days
Payment Terms: 40% T/T in advance,and balanced before delivery
Supply Ability: 7000pcs per month
Contact Now
Detailed Product Description
Type: TURBOCHARGER Material: K18
Size: Standard Stock: Always
Type: Free Standing

Product Description


Part Number 4038790
Previous versions 3599355, 3599356, 4038791
OE number 4089714
Year 2004-
Description Various 160 Excavator
Manufacturer Part Number 4038791
CHRA 3539071
Turbo Model HX25W-TD04HL-11T-6, HX25W
Engine PC100/200/128US
Engine Manufacturer Cummins, Komatsu
Angle α (compressor housing) 155/285º
Angle β (turbine housing) 10/165º
Bearing Housing 1153025450
Turbine Wheel 1153025435
Comp. Wheel 1153025400 Super back
Back plate 1153025300 (S/Back)
Heat shield Number 11530253408
Repair Kit 1153025751
Actuator 4030795/3599951
Settings waste gate (pressure) 0.5-1.04/0.3-1.27 bar
Settings Waste gate (lift shaft) 1.75 mm
Gasket (turbine inlet) 210218 (Stainless Steel)
Gasket turbine outlet 210889 (Stainless Steel)
Gasket oil outlet 210243 (Gasket paper)



Applications

2004- Komatsu Various (160 Excavator) with PC100/200/128US Engine



Why choose us :
1> We are professional turbo and turbo parts factory. The good quality and the competitive price is the advantage of our company.
2> The material we choose is always equal to the OEM standard and products meet to OEM quality system processes
3> A trial order or sample orders are welcomed.
4> More than 800 kinds of turbo products are exported to Europe, America, Japan, and other countries and regions in the world.
5> We will do our best to service you all the time if you have the further question



Shipping:
Depending on various circumstances, three different delivery methods have been taken: by sea, by air cargo and by express service.
*By sea. This is the most economical way of delivery. Suit for big quantity order, the delivery cost dramatically low and assist you in achieving maximum profit. It normally would take about one month for cargoes to reach their destination port.
*By air cargo. The advantage of air cargo is it costs much less time than delivery by sea. Generally it would take about one to two weeks for cargo reaching its destination.
*By express service. It is the most expensive way of delivery, but it is really quick and convenient. Normally this door to door service can deliver the goods to your company only in 3-5days. Fortunately, we have signed big discount contract with most express companies, such as TNT, DHL and UPS, to help our customers cut their delivery expenditure.
----------------------------------------------------
Packing:



  1. We can design the packing by your requirements but with bigger quantity.
  2. If need wooden pallets, the customer needs to pay for the wooden pallet charges
  3. If no requirements, we offer the Corrugated Carton and vellum paper
  4. The price we offer is the factory price.
  5. We can help you to delivery the goods while you have requirement.
  6. And the shipment fee shall be in your account.
  7. We can only release the goods after the payment of the products was made

----------------------------------------------------
Warranty:
Once buying our products you could enjoy 6 months warranty period. Within this period you could claim quality warranty anytime when you find quality problem of our products.
Please contact our After-sales service department in time within 30days after you received the cargo.
we have complete after-sale services operated by the service department. We can provide you with replacement as well as spare parts. Our technical capability and fast response can make you save money and cost.
