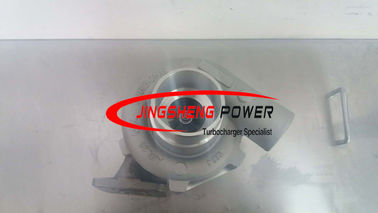

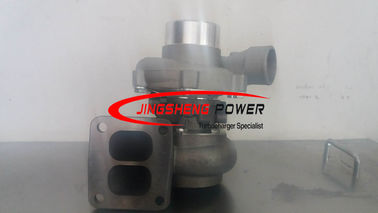

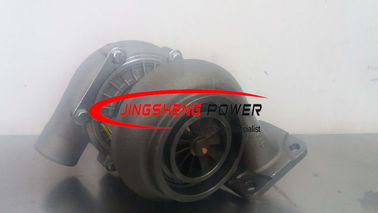

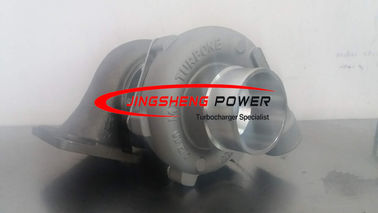

Komatsu Industrial Engines PC220 , PW220-5 Gen Set T04B59 Turbo 312875 465044-0051 6207818210, 6207818220

China Komatsu Industrial Engines PC220 , PW220-5  Gen Set T04B59 Turbo 312875 465044-0051 6207818210, 6207818220 supplier
Komatsu Industrial Engines PC220 , PW220-5  Gen Set T04B59 Turbo 312875 465044-0051 6207818210, 6207818220 supplier Komatsu Industrial Engines PC220 , PW220-5  Gen Set T04B59 Turbo 312875 465044-0051 6207818210, 6207818220 supplier Komatsu Industrial Engines PC220 , PW220-5  Gen Set T04B59 Turbo 312875 465044-0051 6207818210, 6207818220 supplier Komatsu Industrial Engines PC220 , PW220-5  Gen Set T04B59 Turbo 312875 465044-0051 6207818210, 6207818220 supplier

Large Image :  Komatsu Industrial Engines PC220 , PW220-5 Gen Set T04B59 Turbo 312875 465044-0051 6207818210, 6207818220

Product Details:

Place of Origin: China
Brand Name: JINGSHENG
Certification: ISO/TS 16949:2009
Model Number: T04B59

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: JingSheng brand;Neutral packing;OEM
Delivery Time: 5-7days
Payment Terms: 40% T/T in advance,and balanced before delivery
Supply Ability: 7000pcs per month
Contact Now
Detailed Product Description
Type: TURBOCHARGER Material: K18
Size: Standard Stock: Always
Type: Free Standing

Komatsu Industrial Engines PC220 , PW220-5 Gen Set T04B59 Turbo 312875 465044-0051 6207818210, 6207818220

Product Description

Komatsu Industrial Engines PC220 , PW220-5  Gen Set T04B59 Turbo 312875 465044-0051 6207818210, 6207818220
Part Number 312875
Previous Version 465044-0051
OE number 6207818210, 6207818220, 6207-81-8220, 6207-81-8210
Description Industrial Engines Gen Set
Application Excavator PC220 , PW220-5
Displacement 4.89L, 4890 ccm
CHRA 312377 (408105-0173, 408105-0390)
Turbo Model S2D, T04B59
Engine S6D95, S6D95L
Engine Manufacturer Komatsu
Fuel Diesel
KW 124
RPM 2300
Angle α (compressor housing) 300º
Angle β (turbine housing) 270º
Bearing Housing 317328 (430027-0038, 407285-0027, 430027-0048)(Oil Cooled)
Turbine Wheel 314655 (AR57715, 310094A, 317640, 407276-0005, 410188-0014, 410188-0005, 446905-0001/451309-0002) (Ind. 58.35 mm, Exd. 74.2 mm, Trm 46, 11 Blades) (1100040435)
Comp. Wheel 312870 (409179-0026)(Ind. 70. mm, Exd. 43.7 mm, Trm 39, 8/8)
Back plate 197340 (408045-0041)
Heat shield Number 193975 (409299-0000, 409299-0001) (311943, 7N0012, 3524773B)
Repair Kit 468100-0000 (188401-0000, 310063, 3524796, 2W0716, 6N7236) (1100040750)
Turbine Housing 312871 (410401-0022)
Compressor Cover 318132 (408274-0029)
Turbine Housing AR 0.58
Gasket (turbine inlet) 310694 (407294-0001)
Gasket (oil outlet) 311496 (210021, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (oil inlet) 147837 (210023, 55739, 3755739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 210023-0000)(1900000037)
Replaced By 465044-0251, 465044-0051, 465044-0151, 465044-0052, 465044-0252, 465044-0152



Applications

1992- Komatsu Earth Moving  Excavator PC220 , PW220-5 with S6D95 Engine
